The Influx Component¶

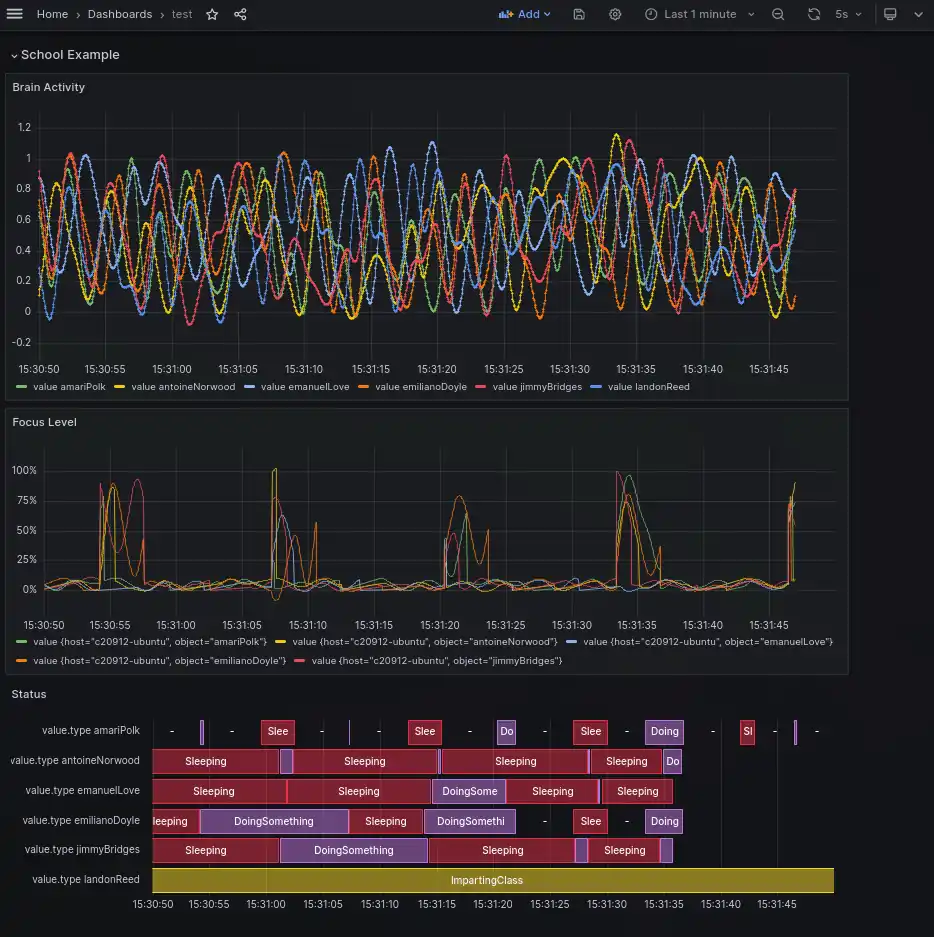

With Sen, you can use Grafana and InfluxDB to visualize the data that runs through your system.

It works as follows:

1. Your Sen process sends the data to another process called Telegraf.
2. Telegraf sends the data to a time-series database called InfluxDB.
3. InfluxDB is then queried by a process called Grafana, which is a web server.
4. You connect to the Grafana server using your web browser.

stateDiagram-v2
    Sen: Sen Process
    Browser: Web Browser
    Grafana: Grafana Server

    Sen --> Telegraf : writes to
    Telegraf --> InfluxDB : writes to
    Grafana --> InfluxDB: queries
    Browser --> Grafana: connects
    You --> Browser: visualize

These monitoring and visualization systems (Telegraf, InfluxDB, Grafana) can be combined in many ways. They are designed to be composable and really scalable. The price to pay is that you have to set up your InfluxDB server, execute the Telegraf server, ensure that they are connected, and then connect Grafana to InfluxDB. Hopefully, this is something that only happens once.

The configuration and usage of these 3rd-party tools are out of the scope of this document, but thankfully there is plenty of information available on the web, and a large community of open-source and commercial users.

Once the data is stored in InfluxDB, you can access it anytime. Maybe you can find other uses, and connect other tools to do your analytics.

The Sen influx component sends the data to Telegraf over UDP or TCP.

Running the Influx component¶

The configuration parameters are:

package sen.components.influx;

sequence<string> SelectionList;

enum Protocol: u8
{
  udp,
  tcp
}

// Overall component configuration
struct Configuration
{
  samplingPeriod  : Duration,       // sampling period for the recordings
  selections      : SelectionList,  // objects to be monitored (using sql)
  telegrafAddress : string,         // ip or name of the Telegraf server
  telegrafPort    : u16,            // port used by the Telegraf server
  protocol        : Protocol,       // protocol used
  batchSize       : u32             // points to batch before emission (0 means no batching)
}

For example, you can run a Sen process and tell the influx component to forward all the objects in a given bus:

load:
  - name: influx
    group: 3
    protocol: tcp
    telegrafAddress: 127.0.0.1
    telegrafPort: 8095
    batchSize: 32
    selections:
      - SELECT * FROM school.primary

Data model¶

In InfluxDB, each data point contains the following elements:

• measurement: String that identifies the measurement to store the data in.

• tag set: Comma-delimited list of key value pairs, each representing a tag.

• field set: Comma-delimited list key value pairs, each representing a field.

• timestamp: Unix timestamp associated with the data in nanosecond precision.

They use a "line protocol" that represents a data point in the following format:

measurement,tag1=val1,tag2=val2 field1="v1",field2=1i 0000000000000000000

Mapping from objects to time series¶

Sen applies the following translation between its object's model and Influx's protocol:

• All data points have a tag named object containing the name of the object.

• All data points have a tag named payload_type containing the type of information contained. Possible values are: event, property_change, creation and deletion.

• For property changes, the measurement is the name of the property. The value stored in the value field.

• For events, the measurement is the name of the event. The arguments (if any) are added as fields.

• For creations, the measurement is "created". All property values are added as fields.

• For deletions, the measurement is "deleted". There are no fields.

• When dealing with values of structures, the information is flattened by creating an Influx field per structure field. This happens recursively, using dots as separators.

• When dealing with values of variants, the type field will contain the name of the type held by it. The value field will contain the corresponding value.

• When dealing with enumerations, there will be an extra ".key" field indicating the numeric value.

Grafana, InfluxDB, and Telegraf Docker Deployment Guide¶

There is a docker image which start a Grafana web server and all the components needed to receive and serve the data.
